P-47 Retracts

Republic P-47 Retracts

Pneumatic Replacement 85 Degree Retracts and Straight Struts for the Hangar 9 1/6 Scale P-47

1/5 Scale Retracts Shown Retracted with Strut Pulled Closed

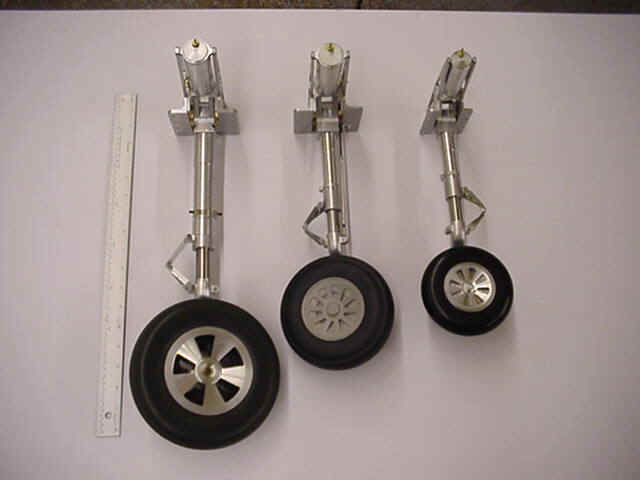

We now offer 4 Sizes of P-47 Retracts for the Exact Scale Fit. ( That's an 18" Scale! )

1/6 Scale Gear shown in the Yellow Wing with a 5.0" Wheel

1/5 Scale Can be Ordered with or without Scale Shrink Bar.
Originally Designed for the 1/5 Scale Vailly Aviation Jug.
1/5 Scale has 7/8" Aluminum Upper Strut & 5/8" Stainless Lower Strut.
Machined 6061-T6 Offset Fork with 1/4" Axles.
Uses our 1" or 1-1/8" Cylinders for Reliable operation.
1/5 Scale uses 5-1/2" to 6" Wheels, 1/4.5 Scale uses 7" Wheels, 1/4 Scale Uses 8"+
1/4 Scale Tested to Handle up to 70lb. Warbirds.

Part Description	Part #	Price
1/7 Scale KMP P-47 Main Retracts & Struts	KMP-P47	$330.00
1/6 Scale P-47 for Top Flite Giant Scale	TF P47	$480.00
1/6 Scale P-47 for the Yellow Jug	Yellow P47	$480.00
1/5 Scale P-47 Retracts without Shrink Bar	1/5 P47	$550.00
1/5 Scale P-47 Retracts with Shrink Bar	1/5 P-47S	$650.00
1/4.5 Scale P-47 Retract w/out Shrink Bar	1/4.5 P47	$680.00
1/4.5 Scale P-47 Retracts with Shrink Bar	1/4.5 P-47S	$750.00
1/4 Scale P-47 Retracts without Shrink Bar	1/4 P-47	$830.00
